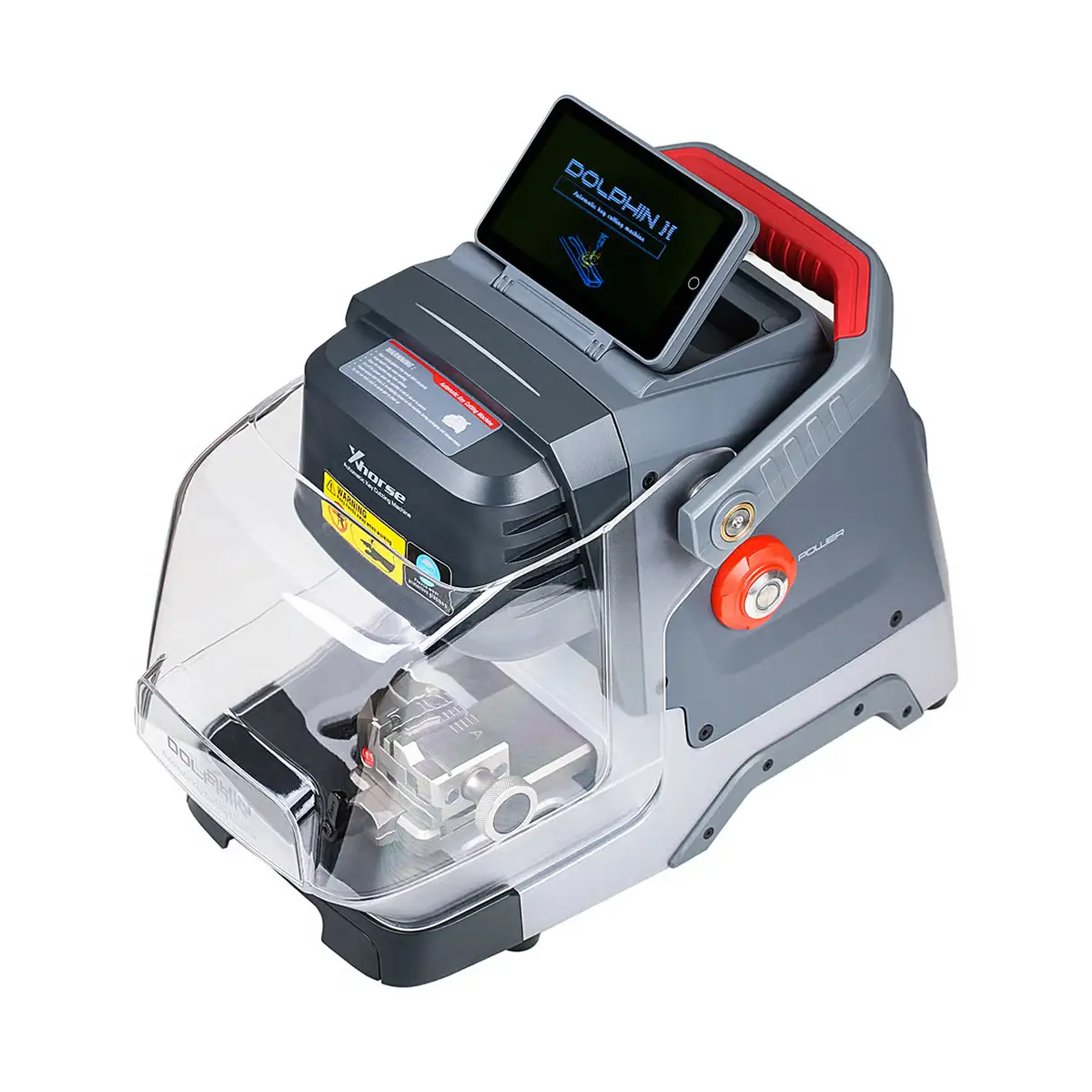

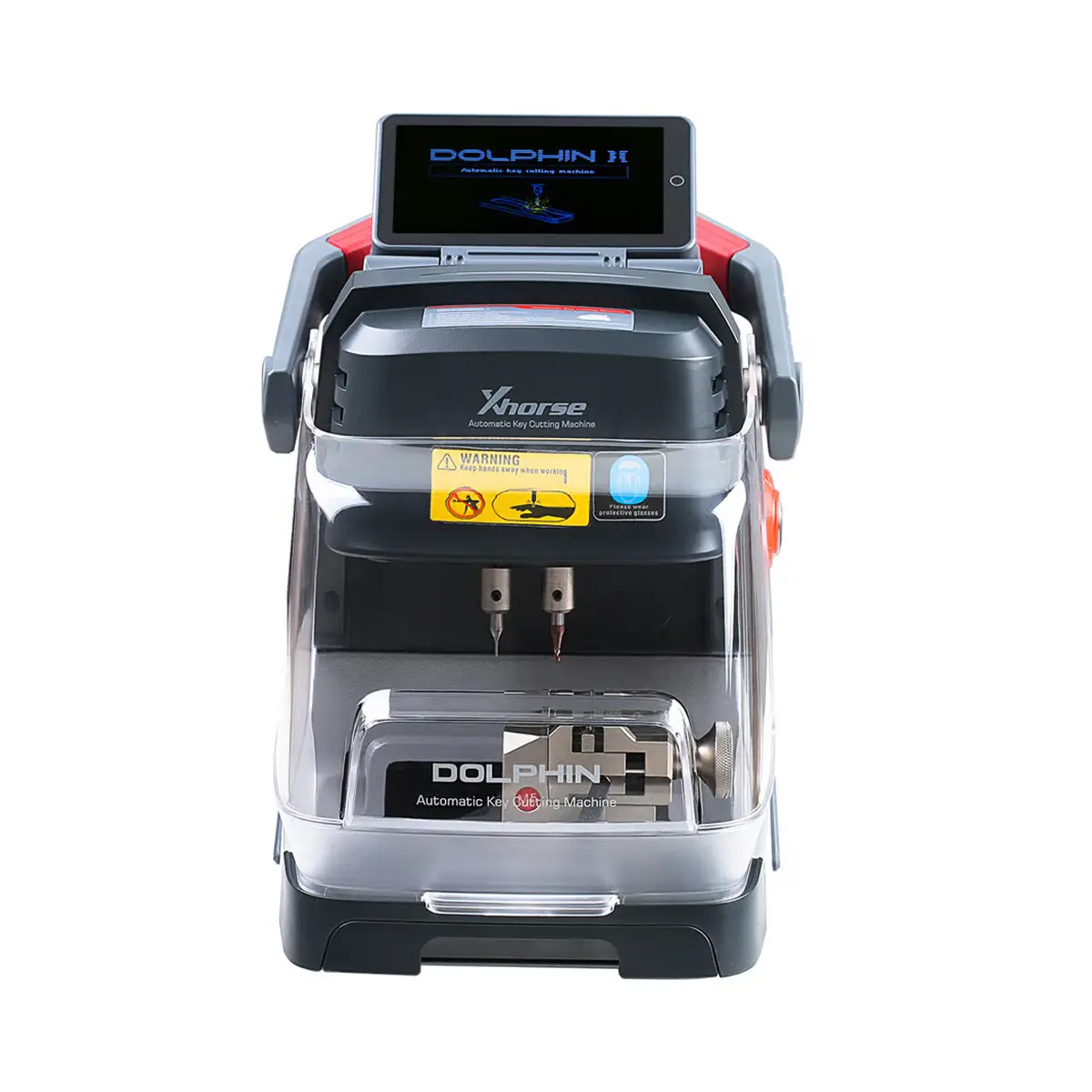

Xhorse Dolphin II XP-005L Key Cutting Machine – Adjustable Screen
Key Features of Dolphin XP-005L:
 1. All Key Lost
2. Key Duplication
3. Built-in Lithium Battery Easy to Carry
4. Customize Key Data
5. Optical Key Bitting
6. Multi-purpose M5 Clamp（No need to frequently replace M1 and M2 clamps）
7. Cut by Bitting
8. Find Bitting
9. Take Photos to Recognize Bitting
10. Recognition (Work with KEY READER)
11. Massive Vehicle Key Database Built- in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data.
12. Protection Shield
13. Smart APP Control HD Touch Screen
14. Support Bluetooth and Wifi
15. The indicator light changes colors with the change of real-time working status.
HD Touch Screen
Users can directly complete operation on the screen.

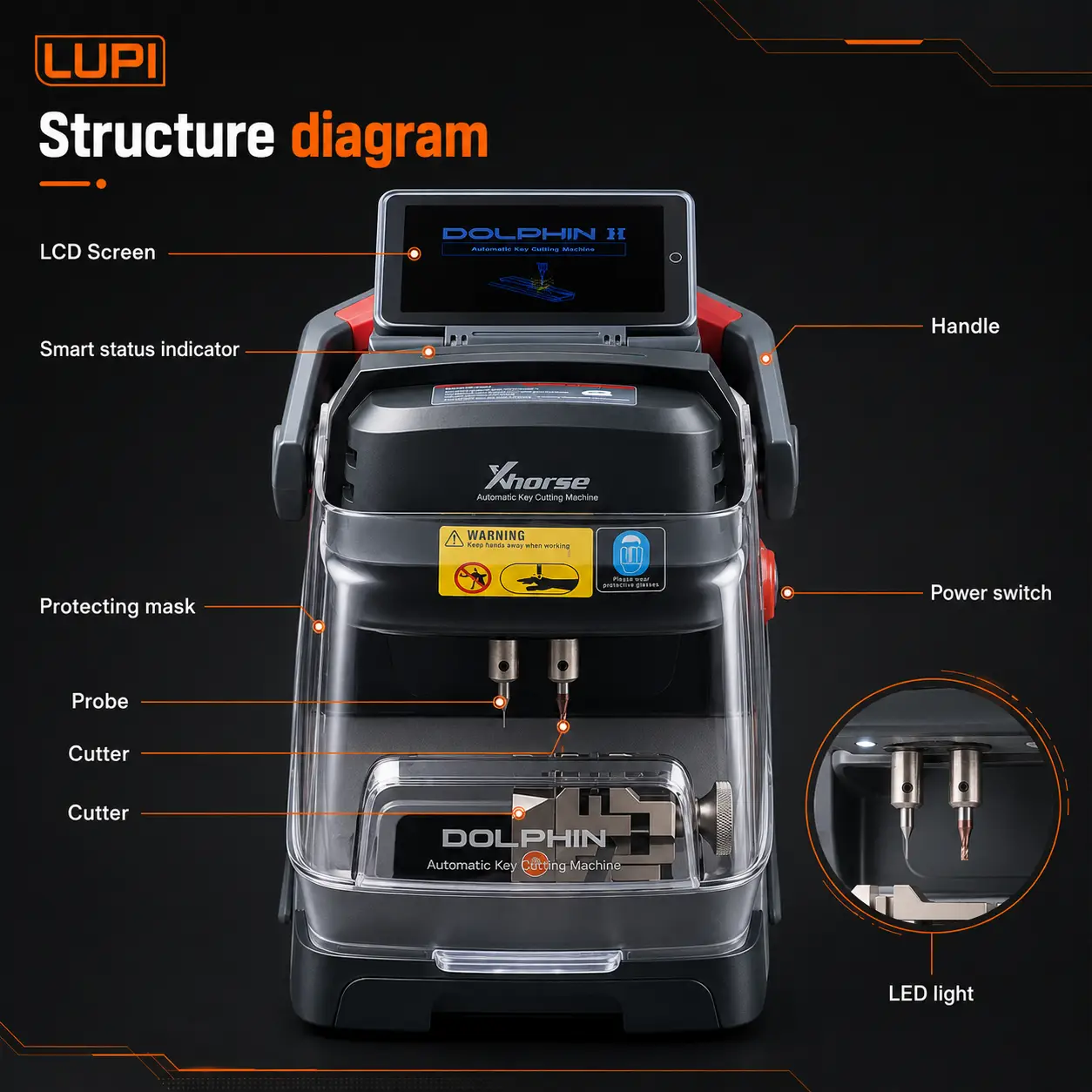

Xhorse Dolphin XP005-L Structure:

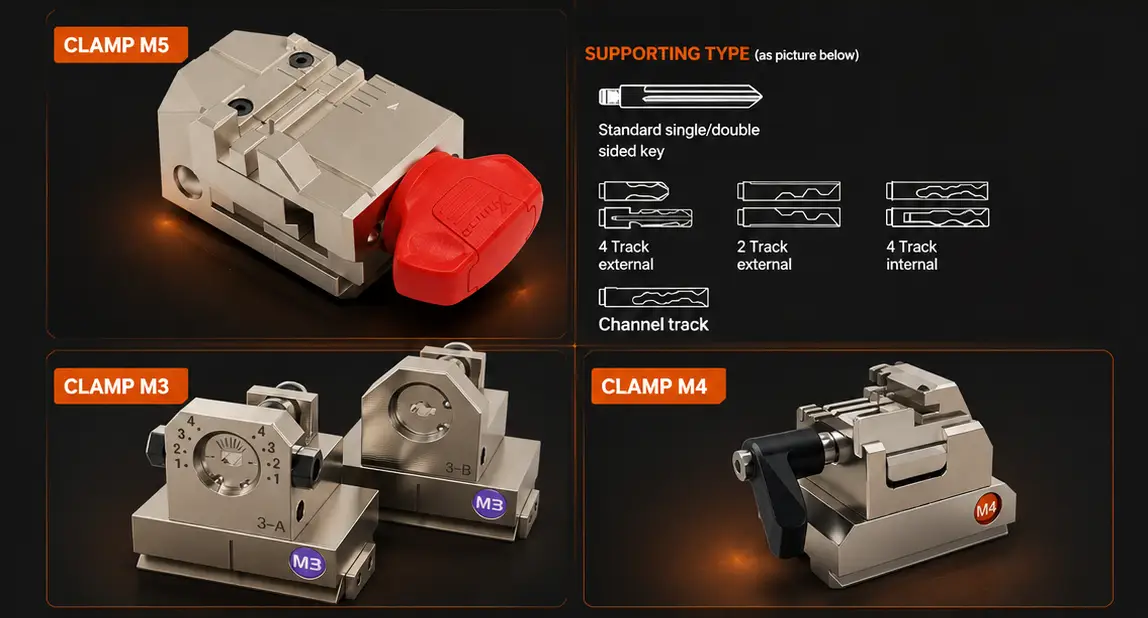

Multi-purpose Clamps
A wide duplication availability guaranteed by a variety of functional clamps, support multiple key types,
standard single sided,standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track Internal, F021 & Citroen SX9 keys, residential keys, etc.
Xhorse Dolphin XP-005L is Standard equipped with Clamp M5.
Clamp M3 and Clamp M4 are optional.
 Xhorse Dolphin XP-005L Software Overview:
â–ªSupporting self-calibration
â–ªSupporting key duplication and cutting for vehicle keys
â–ªSupporting universal key decode for multiple key types
â–ªOperation on APP through Bluetooth
â–ªBuild-in key database
 Xhorse Dolphin II XP005L VS Dolphin XP005:Â
Item | xhorse Dolphin XP-005L | |
| Â | Â | Â |
Touch Screen | An angle-adjustable 5-inch capacitive touch screen, and users can directly complete operation on the screen.LCD resolution 1280*720. | Null |
Protective Shield | Yes, moveable transparent protective shield prevent metal debris from spattering. | Null |
Smart status indicator | With colorful indicator lights (in blue:working;              in yellow:information notification; in red: false alarm /error warning) | Null |
Bluetooth | Yes. Control the machine by the Xhorse app on your smart phone or other intelligent terminals via bluetooth | No,XP-005 not have WIFI module, but support online update by Xhorse APP with smart phone via WIFI |
Wifi | Yes, directly upgrade online via wifi connection | Yes, online update via Xhorse APP with smart phone |
Multiple Clamps | Standard equipped M5 clamp (M1 and M2 2 in 1), and M3 Clamp(optional) , M4 Clamp(optional) | Support clamps M1, M2, M3(optional) and M4 (optional) |
Hexagon bar wrench | 2mm+4mm 3mm hexagon bar wrench, 3mm hexagon bar wrench,6mm hexagon bar wrench | 2mm hexagon bar wrench, Â 4mm hexagon bar wrench |
Weight | Net weight 13KG, Gross weight 18.5KG | Net weight 15KG, Gross weight 18KG |
Battery | With built-in lithium battery | With built-in lithium battery |
Language | English | English |
Update online | Machine firmware and database upgrade via Wifi directly | Online software update on APP, update through Xhorse"Upgrade Kit" |
Support Key types | Support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track Internal, F021 & Citroen SX9 keys, residential keys, etc | Same |
Key database | Built-in powerful database covers over 100 car brands, 2,000 car modsls and 20,000 key data Accurate key data, detailed parameters, and clear key graphics | Same |
Function | Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types | Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types |
Target users | Provide users outdoor and roadside services | Provide users outdoor and roadside services |
Â

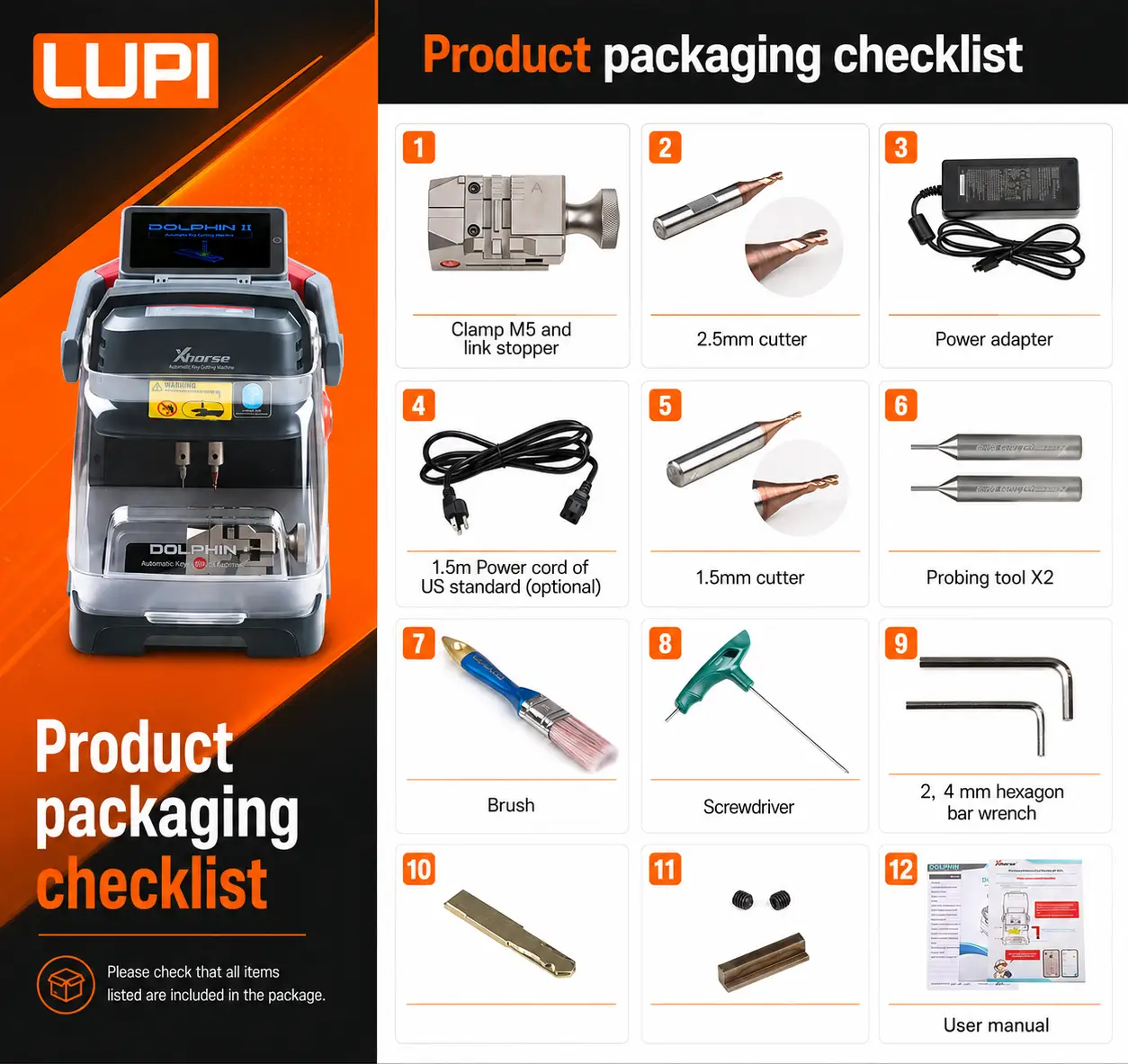

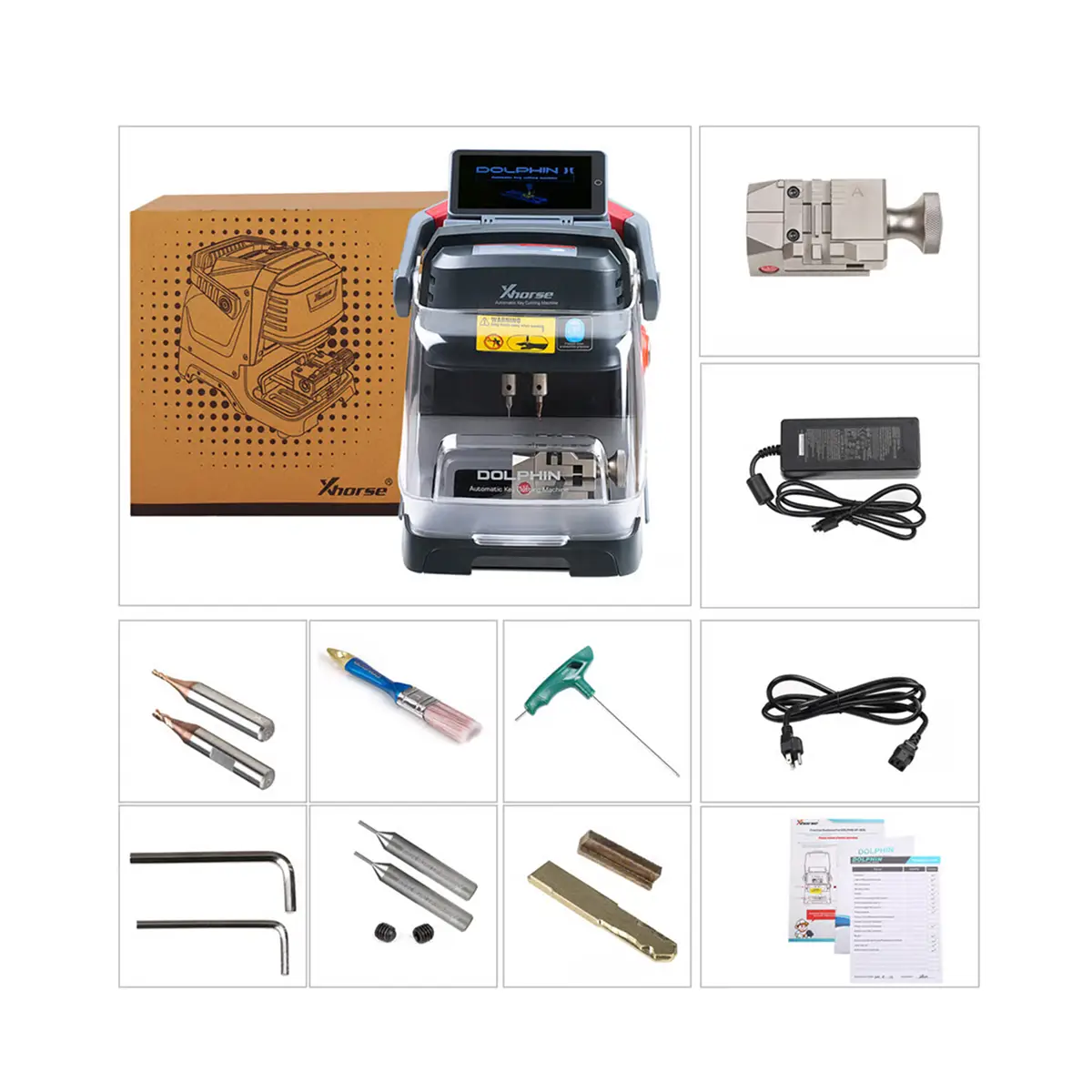

1pc x Machine
1pc x Clamp M5 and link stopper
1pc x Clamp M3 ( optional )
1pc x Clamp M4 ( optional )

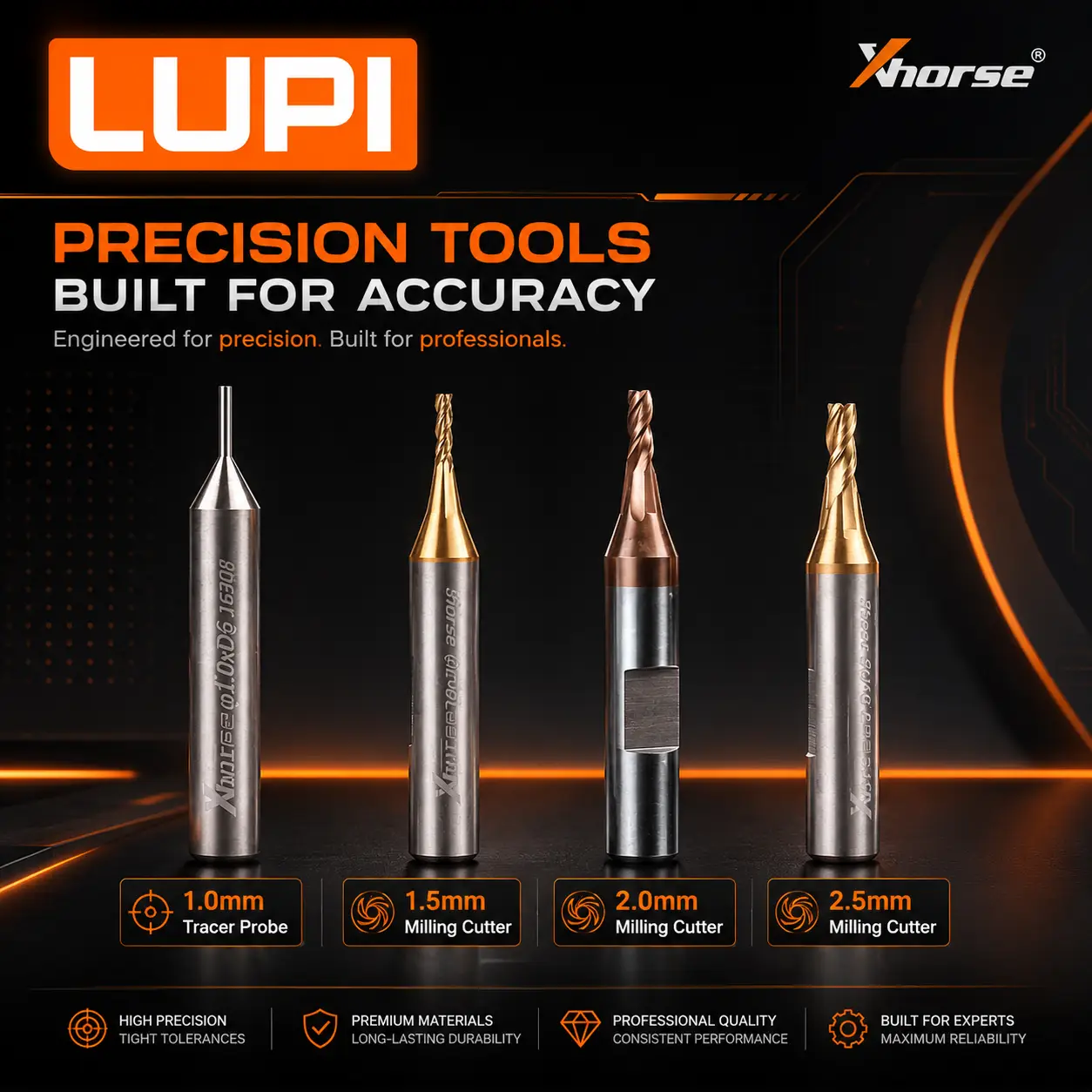

1pc x 1.5mm cutter
1pc x 2.5mm cutter
1pc x Probe
1pc x 2mm+4mm 3mm hexagon bar wrench
1pc x 3mm hexagon bar wrench
1pc x 6mm hexagon bar wrench
1pc x Protective bracket
1pc x Power adapter
1pc x 1.5m Power cord of Mainland China standard
1pc x 1.5 Power cord of UK standard (optional)
1pc x 1.5 Power cord of US standard (optional)
1pc x 1.5 Power cord of EU standard (optional)
1pc x Built-in battery (optional)
1pc x Brush
1pc x Product qualitty certificate
1pc x User manual
