XTool PRODIGY – Smart Diagnosis Device (Repair Informatics Database)

The XTool Prodigy is a high-performance diagnostic tool featuring a large 13.3” touchscreen and Android 10 system, supporting advanced protocols like DoIP and CAN FD. Designed for electric, hybrid, and gasoline vehicles worldwide, it offers fast diagnostics, 50+ service functions, ADAS calibration, and ECU programming. With topology mapping and detailed reports, it delivers precise and efficient diagnostics for professional use.

● 13.3" HD Display (1920 × 1080) with Android 10.0 system

● Powered by 2.2GHz + 1.8GHz Octa-core processor with 8GB RAM and 256GB ROM

● Dual Wi-Fi modules for simultaneous internet and VCI connection, ensuring uninterrupted online diagnostics. The VCI supports wireless communication up to 10 meters with high-speed stability, allowing reliable DOIP programming and coding without cable constraints

● Long-lasting 9600mAh, 7.2V battery for extended diagnostic sessions

● Built-in 13MP rear camera for capturing high-resolution images

● Supports all standard VCI protocols including DoIP and CANFD

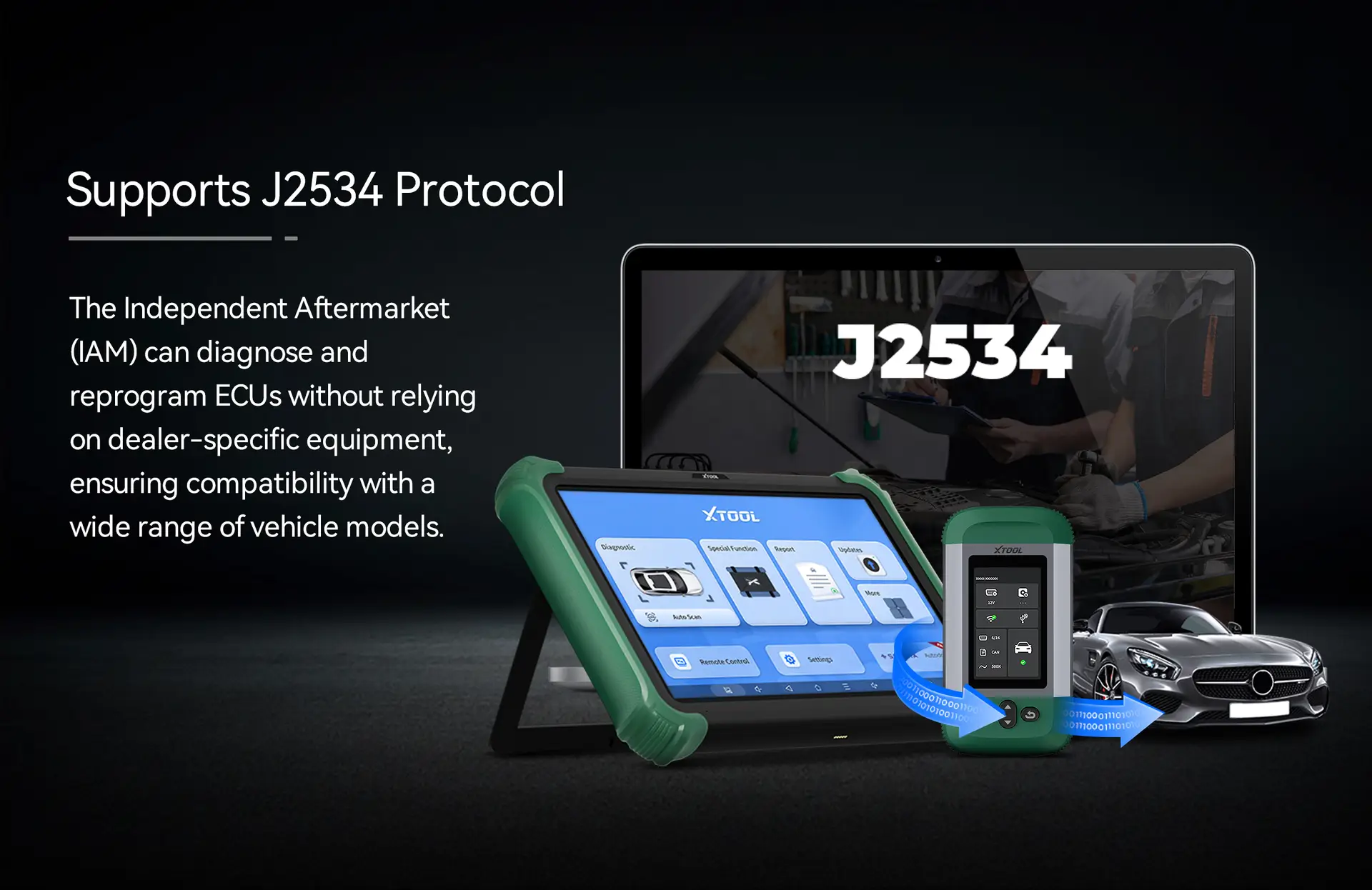

● SAE J2534 compatibility for OEM-level software connectivity

● Supports 70+ brands and 5,000+ vehicles across U.S., European, and Asian markets

● Tesla Diagnostics Available: Perform comprehensive diagnostics on Tesla vehicles with full data access and a range of special functions

● Topology module mapping with color-coded full system status (on supported vehicles)

● Supports offline programming for Ford, Lincoln, and Mazda

● Supports online coding and programming for VAG, BMW, and Mercedes-Benz

● Capable of ADAS system calibration for cameras and radars

● Includes OBDI connectors and a wireless charging dock that enables instant charging by simply placing the device on the dock

● Provides enhanced diagnostic reports: PreSCAN and PostSCAN

● 3-year software subscription included

● AutoAuth™ integration for FCA SGW access
